Arzel Zoning

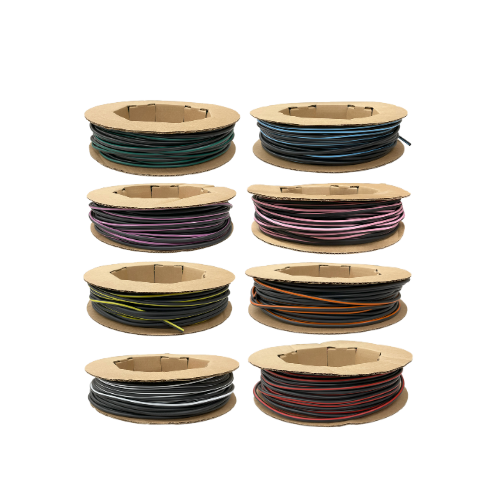

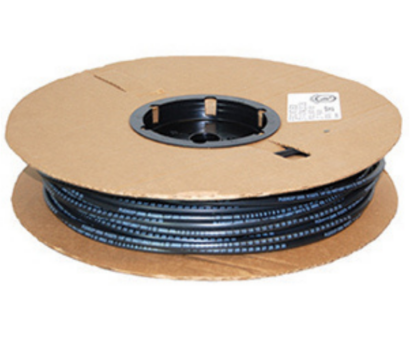

Use our PVC tubing to connect dampers to the zone control panel in most zoning applications. We recommend using a different color for each zone.
| Part Number | Description |
|---|---|
| PVC-BLUE | Black tubing with a blue stripe (200 ft. roll) |
| PVC-GREEN | Black tubing with a green stripe (200 ft. roll) |
| PVC-ORANGE | Black tubing with an orange stripe (200 ft. roll) |
| PVC-PINK | Black tubing with a pink stripe (200 ft. roll) |
| PVC-PURPLE | Black tubing with a purple stripe (200 ft. roll) |
| PVC-RED | Black tubing with a red stripe (200 ft. roll) |
| PVC-WHITE | Black tubing with a white stripe (200 ft. roll) |
| PVC-YELLOW | Black tubing with a yellow stripe (200 ft. roll) |

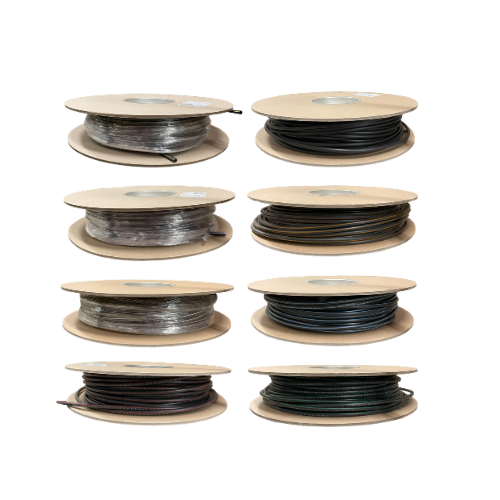

Use our plenum tubing with applications that have tubing inside the duct, which will be necessary with InsertaDamper, EzyFit dampers, and RegiDampers.
| Part Number | Description |
|---|---|
| PLEN-BLUE | Plenum-rated tubing with blue stripe (250 ft. roll) |
| PLEN-GREEN | Plenum-rated tubing with green stripe (250 ft. roll) |
| PLEN-ORANGE | Plenum-rated tubing with orange stripe (250 ft. roll) |
| PLEN-PINK | Plenum-rated tubing with pink stripe (250 ft. roll) |
| PLEN-PURPLE | Plenum-rated tubing with purple stripe (250 ft. roll) |
| PLEN-RED | Plenum-rated tubing with red stripe (250 ft. roll) |
| PLEN-WHITE | Plenum-rated tubing with white stripe (250 ft. roll) |
| PLEN-YELLOW | Plenum-rated tubing with yellow stripe (250 ft. roll) |

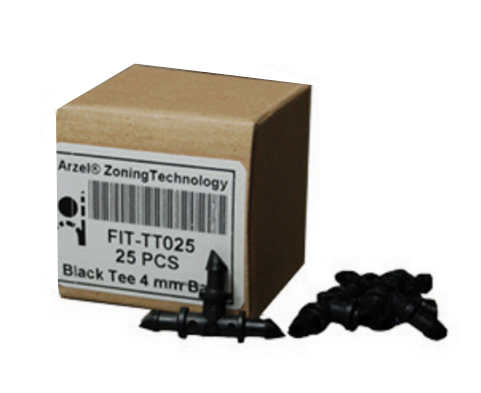

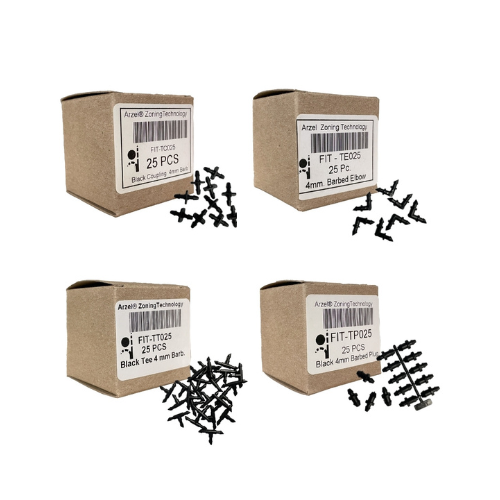

Use these fittings with standard PVC tubing or plenum-rated tubing. They are all 4mm barbed fittings, which fit together without any tools necessary.
Coupling fittings connect lengths of tubing together, in case you cut it too short or need to add a service length. Elbow fittings achieve a 90-degree turn, and are not necessary but may be contractor-preferred. Plug fittings are used in troubleshooting. Tee fittings are needed to add multiple dampers to a zone.
| Item ID | Item Description |
|---|---|
| FIT-TC025 | Coupling Fittings, qty. 25 |
| FIT-TE025 | Elbow Fittings, qty. 25 |
| FIT-TT025 | Tee Fittings, qty. 25 |
| FIT-TP025 | Plug Fittings, qty. 25 |

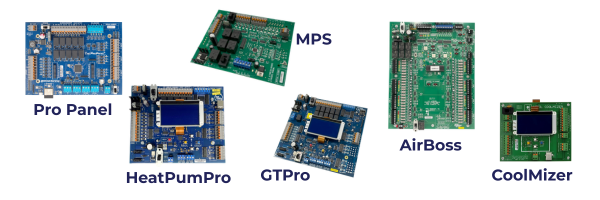

Replaces the circuit board in MPS series zoning control panels.
| Part Number | Description |
|---|---|
| PCB-00202 | MPS 2-zone circuit board |
| PCB-00203 | MPS 3-zone circuit board |

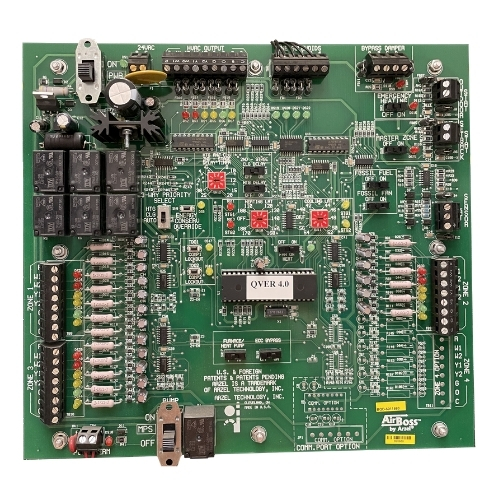

Replaces the circuit board in AirBoss zoning control panels.
| Part Number | Description |
|---|---|
| PCB-02002 | AirBoss 2-zone circuit board |
| PCB-02003 | AirBoss 3-zone circuit board |
| PCB-02004 | AirBoss 4-zone circuit board |
| PCB-02006 | AirBoss 6-zone circuit board |
| PCB-02008 | AirBoss 8-zone circuit board |

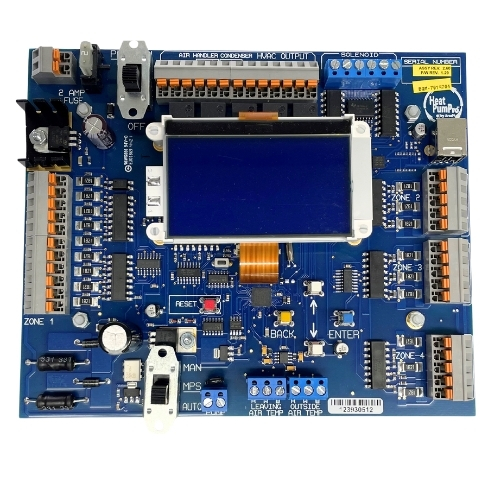

Replaces the circuit board in HeatPumPro zoning control panels.
| Part Number | Description |
|---|---|
| PCB-HPP02 | HeatPumPro 2-zone circuit board |
| PCB-HPP03 | HeatPumPro 3-zone circuit board |
| PCB-HPP04 | HeatPumPro 4-zone circuit board |
Replaces the circuit board in GTPro zoning control panels.
| Part Number | Description |
|---|---|
| PCB-GTP02 | GTPro 2-zone circuit board |
| PCB-GTP03 | GTPro 3-zone circuit board |
| PCB-GTP04 | GTPro 4-zone circuit board |

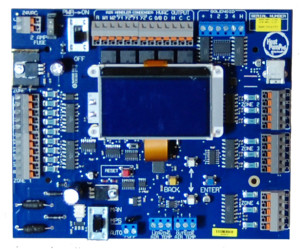

Pictured: FACT circuit board
| Part Number | Description |
|---|---|
| PCB-COOLM | CoolMizer circuit board |
| PCB-FACT | Fresh Air Control Technology (field install) |
| PCB-SSZNG | Smart Zone circuit board |
| PCB-ZVIBD | Zone Valve Control circuit board |

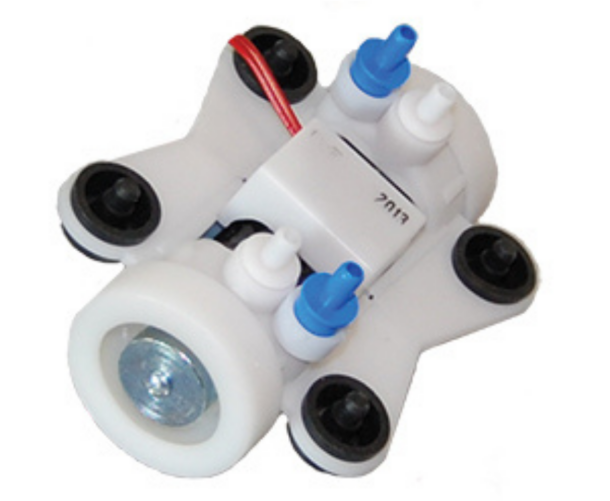

This is the air pump used in all Arzel Zoning control panels.
| Part Number | Description |
|---|---|
| PMP-PUMP1 | Replacement air pump for any Arzel system |

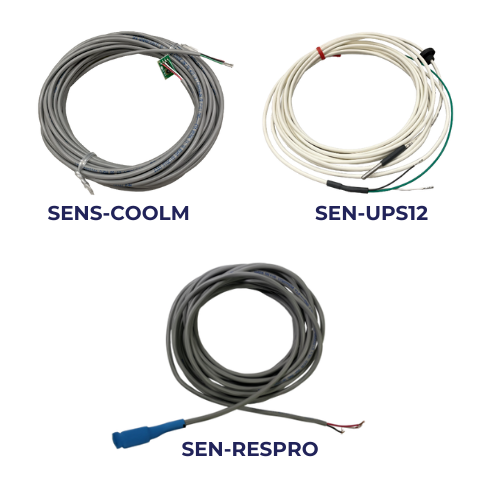

Replacement sensors for all Arzel Zoning systems are listed below.
| Part Number | Description |
|---|---|
| SEN-RESPRO | Replacement LAT or OAT sensor for HeatPumPro; replacement loop sensor for GTPro |
| SENS-COOLM | Replacement CoolMizer sensor |
| SEN-UPS12 | Replacement LAT sensor for AirBoss |

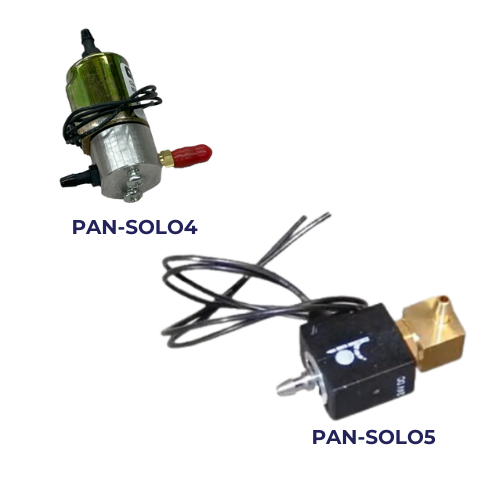

Use PAN-SOLO5 as the replacement solenoid for any panel with a polycarbonate enclosure. For panels with a metal enclosure, use PAN-SOLO5 for HeatPumPro, GTPro, or AirBoss panels with 6 or 8 zones. Use PAN-SOLO4 for CoolMizer, MPS in a metal enclosure, or AirBoss (2-4 zones) in a metal enclosure.
| Part Number | Description |
|---|---|
| PAN-SOLO5 | Replacement solenoid for any panel in polycarbonate enclosure, and all HeatPumPro, GTPro. Use with 6 or 8 zone AirBoss. |
| PAN-SOLO4 | Replacement solenoid for CoolMizer, MPS in a metal enclosure, and 2-4 zone AirBoss in a metal enclosure. |

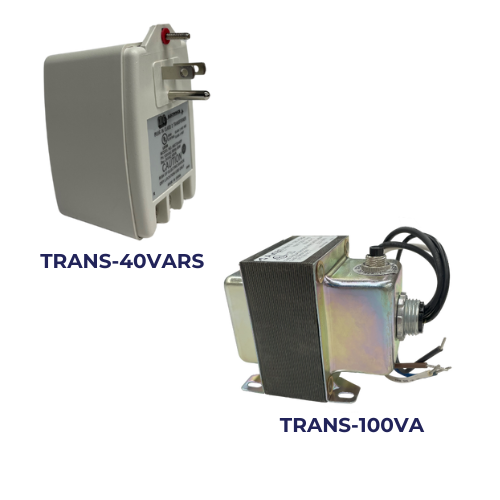

These transformers are only needed for replacement parts; Arzel Zoning panels ship with a transformer.
| Part Number | Description |
|---|---|
| TRANS-40VARS | Replacement transformer for 2-4 zone panels, or CoolMizer |
| TRANS-100VA | Replacement transformer for 6-8 zone AirBoss panel. |

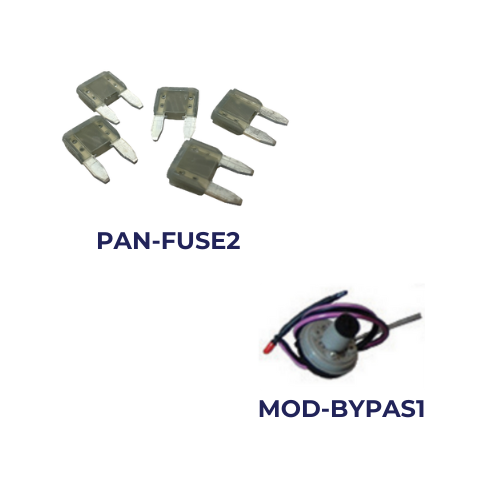

| Part Number | Description |
|---|---|
| PAN-FUSE2 | MPS panel fuse (2amp) qty. 5 |
| BYP-SWICH | Auto Pressure Switch |
| MOD-BYPAS1 | Modulating Bypass Transmitter |

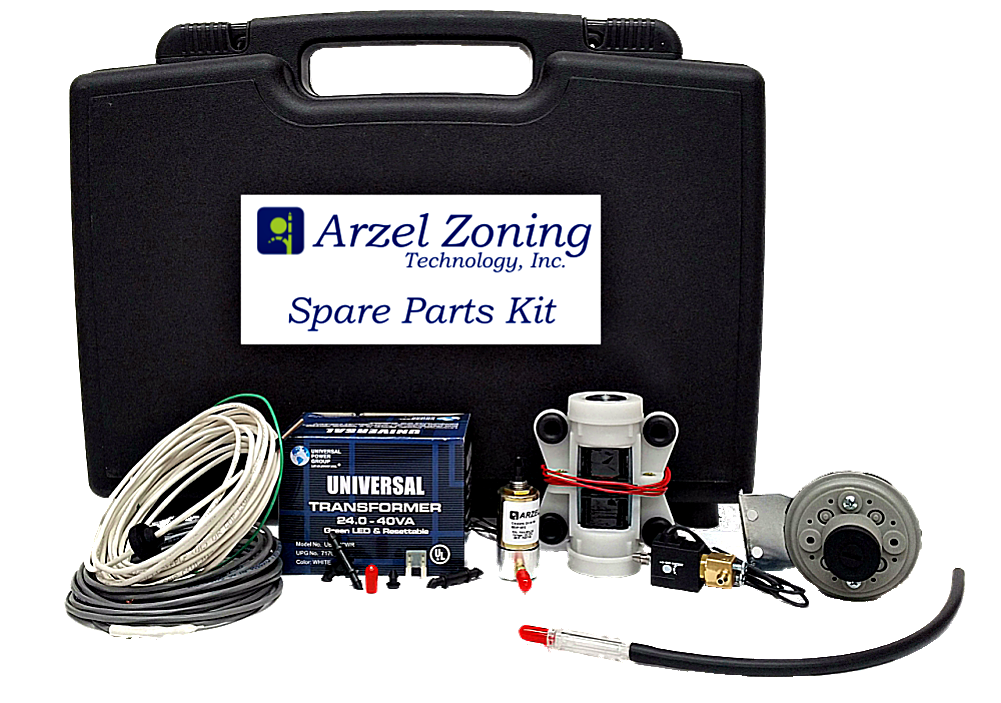

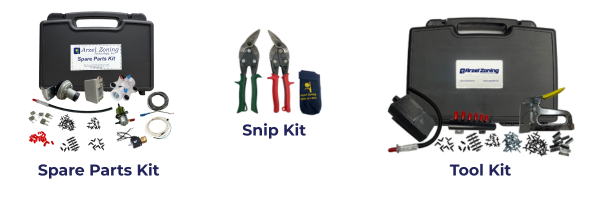

The Arzel Spare Parts Kit Includes:
| Part Number | Description |
|---|---|
| TOOL-RPKIT | Arzel Spare Parts Kit with case |

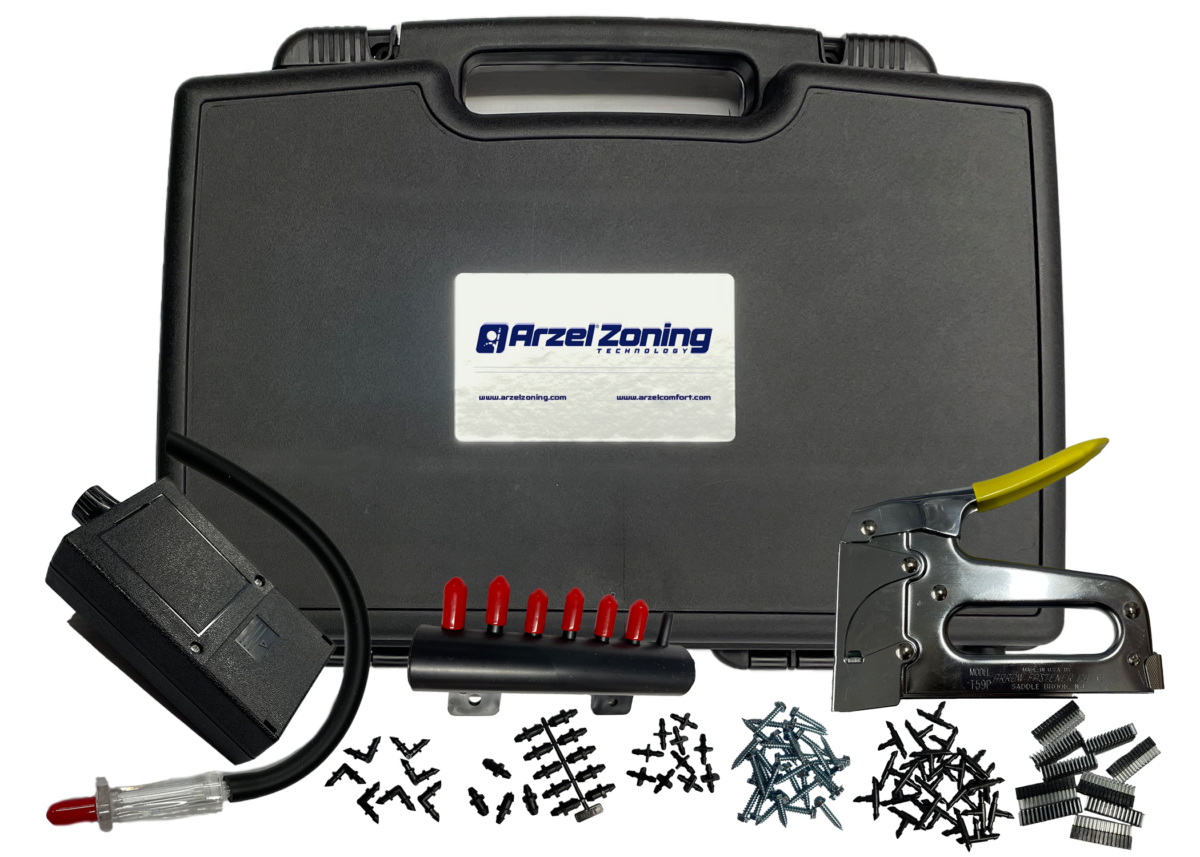

Contains all of the accessories and fittings you need to complete an Arzel install. Includes:
| Part Number | Description |
|---|---|
| TOOL-KIT | Arzel Tool Kit with case |

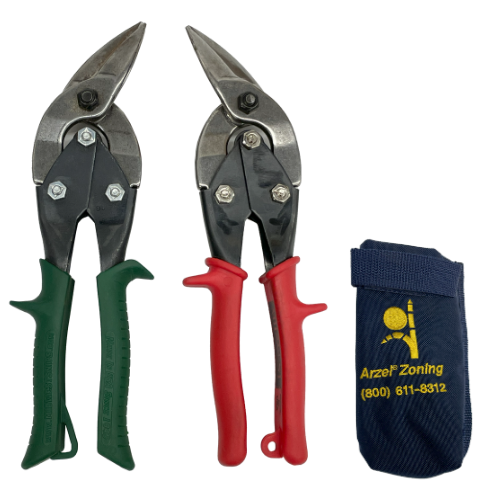

These sheet metal snips are the tools you need to cut into the ductwork to install our EzySlide dampers.
| Part Number | Description |
|---|---|
| TOOL-SNKIT | Right and Left Snips with Holster |

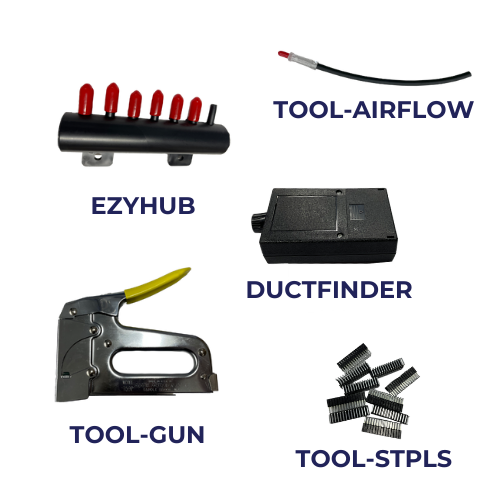

Our stapler is sized to avoid compressing the tubing as you staple. Use EzyHub to organize your air lines, especially when you’re using insertable dampers. The airflow indicator shows you whether an air line is getting proper pressure or vacuum.
| Part Number | Description |
|---|---|
| EZYHUB | EzyHub air reservoir |
| TOOL-AIRFLOW | Airflow Indicator |
| DUCTFINDER | Duct Finder (noise maker) |
| TOOL-GUN | Stapler with spacing for tubing |
| TOOL-STPLS | Box of staples |
