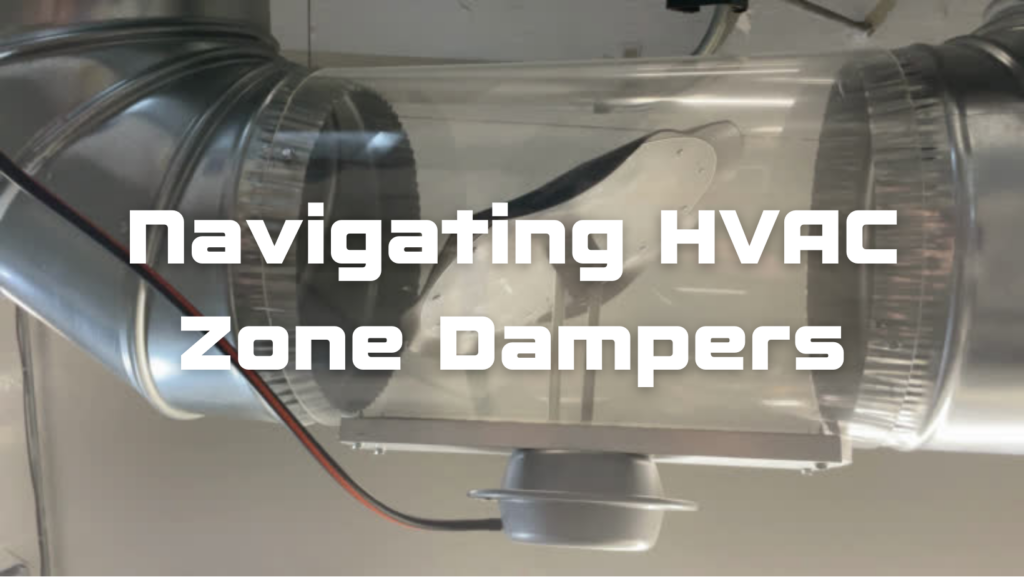

Navigating HVAC Zone Dampers: A Guide to Smart Comfort Control

HVAC systems play a pivotal role in maintaining optimal comfort levels. They were invented for it. However, traditional HVAC systems often struggle with maintaining consistent temperatures in different areas of a home or building. This is where HVAC zone dampers step in, offering a solution that allows for customized climate control in different zones of a building. In this guide, we’ll delve into what HVAC zone dampers are, how they work, and the various options available when purchasing them.

What are HVAC Zone Dampers?

HVAC zone dampers are devices installed inside the ductwork of an HVAC system. Their primary function is to regulate airflow to different zones or rooms within a building, allowing for independent temperature control in each zone. When the dampers open or close, they adjust the amount of heated or cooled air that enters specific areas. That’s how dampers optimize comfort levels and energy efficiency.

How Do HVAC Zone Dampers Work?

HVAC zone dampers operate based on temperature settings programmed by the user. They are typically controlled by a central thermostat or a zoning system. When a particular zone requires heating or cooling, the corresponding damper opens, allowing conditioned air to flow into that area. Conversely, when a zone reaches the desired temperature or is unoccupied, the damper closes. Zone dampers give building occupants more precise control of the temperature in their space.

Options Available When Purchasing HVAC Zone Dampers

1. Manual Dampers

These are operated manually by adjusting a lever or dial located on the ducting. While manual dampers are cost-effective, they require physical adjustment and offer limited convenience compared to motorized dampers.

Manual dampers are an inexpensive way to balance the heating and cooling in a building. Installing one damper is much less expensive than investing in an entire zoning system. The only drawback is flexibility. Manual dampers need to be adjusted as the seasons change. Because you need continuous access, they can’t be hiding in less accessible areas. Still, a manual damper like the BalancePro could be the right solution for your application. It’s also a great solution for clients who are thinking about zoning, but not quite ready to commit. Arzel’s BalancePro is installed into the same cut-in as our air-driven dampers, so you can install a manual damper now and upgrade to a zoning system later.

2. Motorized Dampers

Motorized dampers are equipped with actuators that allow for remote or automated control. They can be integrated into smart home systems, enabling users to adjust settings via smartphones or voice commands. Motorized dampers are typically more expensive, but they offer greater flexibility and convenience than manual dampers.

3. Air-Driven Dampers

Air-driven dampers are very similar to motorized dampers, and they are also flexible and convenient. There’s just one important difference. Since they are air-driven, these dampers do not need motors on each damper. Instead, an air pump supplies pressure and vacuum to open and close each damper. Air-driven dampers offer greater reliability because they don’t have a motor on each damper. These dampers are also less expensive than their motorized equivalent.

Air-driven dampers are also known as pneumatic dampers. Not to be confused with the old-style pneumatic dampers, today’s air-driven dampers are much easier to use. They offer several benefits over motorized dampers, including an easy cut-in installation.

Arzel offers several pneumatic zone dampers to fit into different types of duct. EzySlide dampers can be round or rectangular. They are installed by cutting a hole in the duct, and installation takes about 2 minutes per damper. They also have a gasketed seal that keeps the duct well-sealed.

For retrofit zoning jobs, there are a few more pneumatic damper options that might make the installer’s life easier. EzyFit dampers fold in half like a taco, and can be inserted into the duct even around a corner. A magnet holds them in place. InsertaDamper can also be inserted into a round duct, and is held in place with a spring. RegiDamper can be inserted directly underneath the register.

Zoning Systems

Standalone Zoning Systems

These systems consist of multiple thermostats and zone dampers controlled by a central control panel. They are ideal for retrofitting existing HVAC systems and provide basic zoning capabilities.

Integrated Zoning Systems

Integrated zoning systems are designed to work seamlessly with specific HVAC units or smart home platforms. They offer advanced features such as occupancy sensing, scheduling, and energy usage tracking, allowing for precise climate control and energy management.

Arzel Zoning System Options

Arzel offers standalone zoning systems that are specialized for different types of equipment. Each zoning system works with all of our zone dampers, and is compatible with many smart home thermostats that offer the features common with integrated zoning systems.

HeatPumPro is our most popular zoning system, with extensive features like zone weighting and built-in staging control. It’s compatible with not only heat pumps, but also conventional furnace/AC split systems, heat pumps with electric backup, and dual fuel.

AirBoss can control up to eight zones, and has features that fit light commercial spaces well. It can control single- or multi-stage equipment, including heat pumps.

MPS is an economical zoning system for single-stage equipment. It’s perfect for new construction, when you need 2 or 3 zones.

GTPro is designed for geothermal equipment, with loop temperature monitoring and zone weighting.

Energy Efficiency

Look for dampers with energy-efficient features such as insulated blades and tight seals to minimize air leakage and improve overall system efficiency. Additionally, opt for models with low power consumption. Energy-efficient actuators will reduce energy usage and operating costs.

At Arzel, we’re proud to include gasketed seals on our dampers. Our only damper without a gasketed seal is our RegiDamper, and we suggest using it only when necessary because there is some bleed-by.

We also boast dampers without individual motors, so the only thing you’re powering is the control board and a small air pump. Since our dampers don’t have motors, they are incredibly reliable. Our test damper has opened and closed 20 million times and is still going!

The Lowdown on Zone Dampers

HVAC zone dampers offer a practical solution for optimizing comfort and energy efficiency in residential and commercial buildings. By dividing the space into separate zones and regulating airflow accordingly, zone dampers provide customizable climate control tailored to individual preferences. When purchasing HVAC zone dampers, consider factors such as manual vs. automatic operation, zoning systems, and energy efficiency to make an informed decision that meets your specific needs. With the right zone dampers in place, achieving ideal indoor comfort has never been easier.

Take a moment to learn more about Arzel zone dampers today, and give us a call at (800) 611-8312 if you have any questions!
