Arzel Zoning

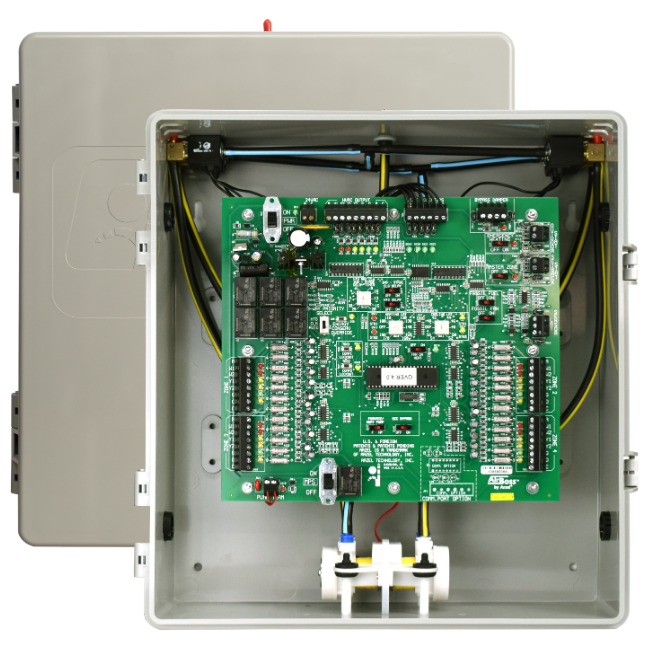

The AirBoss® zone control is perfect for larger residences or light commercial applications and can control up to eight zones. It has the flexibility to control single- or multi-stage equipment, including heat pumps.
| Item ID | Item Description |
|---|---|
| PAN-AB002 | AirBoss® 2-zone panel |
| PAN-AB003 | AirBoss® 3-zone panel |
| PAN-AB004 | AirBoss® 4-zone panel |
| PAN-AB006 | AirBoss® 6-zone panel |
| PAN-AB008 | AirBoss® 8-zone panel |
The AirBoss® works with any standard 24-volt system including split geothermal, heat pump, and conventional furnace and air conditioner. This makes the AirBoss® the perfect HVAC zone board for both new construction and retrofit applications.
The AirBoss® can operate 2, 3, 4, 6, or 8 zones and an unlimited number of slave zones can be added. This makes the AirBoss® perfect for larger residential properties and light commercial applications where temperature control and usage patterns call for zoning.
The AirBoss® comes equipped with a LAT (Leaving Air Temperature) sensor, that helps to protect the heating and cooling equipment in the event of over conditioning.
The AirBoss® comes equipped with a three-way priority switch that allows the system to automatically heat or cool an individual zone that has specific conditioning requirements.
Yes, the AirBoss is compatible with heat pumps and dual fuel systems. With heat pump applications, the AirBoss does require heat pump thermostats on all zones. We recommend the Pro Panel for most heat pump and dual fuel applications because the Pro Panel has more specialized settings to stage heat pumps effectively, and it handles backup heat internally. With the Pro Panel, you do not need to use heat pump thermostats on all zones; you can use standard 24-volt thermostats instead.
Yes, the AirBoss comes with a sensor that monitors the leaving air temperature. The AirBoss works with or without the sensor.
The AirBoss panel can control up to eight zones, making it the perfect size for many light commercial zoning applications. The AirBoss also has Master Zone Control, which allows you to control all zones from the zone 1 thermostat. This works great when a commercial building is unoccupied, or during maintenance. If you need more than eight zones, try the Pro Panel, which can be daisy-chained to create up to 16 zones.
No, the AirBoss is equipped with adjustable staging timers that you can set to stage the system based on runtime.
You can find part numbers for any replacement parts you may need on our replacement parts page. Replacement parts are available at our distributor locations. If the panel is under warranty, please call us at 800-611-8312 to start a warranty claim while you’re on the job site. We’ll verify the part(s) that need to be replaced, and send the replacement parts directly to you.
