Arzel Zoning

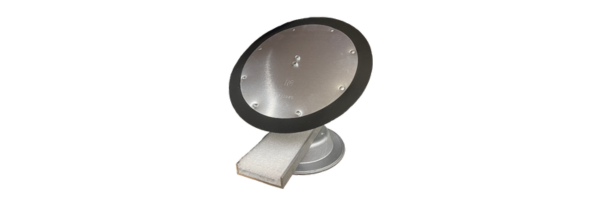

The EzySlide® damper is installed directly into existing ductwork, saving you time and eliminating mess for your client. The unique motorless design makes them the quietest, most reliable dampers in the industry.
EzySlide dampers are not position-sensitive, so you can install them in any orientation. They are connected to the zoning control panel with pneumatic tubing. The dampers close with pressure and open with vacuum.
Available in round and rectangular sizes. Round dampers are also available pre-installed in a sleeve. We also make custom sizes. Call 216-831-6068 to find out if we can make your size.
| Part Number | Description |
|---|---|
| STK-ER0004 | 4-inch diameter round EzySlide |
| STK-ER0005 | 5-inch diameter round EzySlide |
| STK-ER0006 | 6-inch diameter round EzySlide |
| STK-ER0007 | 7-inch diameter round EzySlide |
| STK-ER0008 | 8-inch diameter round EzySlide |
| STK-ER0009 | 9-inch diameter round EzySlide |
| STK-ER0010 | 10-inch diameter round EzySlide |
| STK-ER0012 | 12-inch diameter round EzySlide |
| STK-ER0014 | 14-inch diameter round EzySlide |
| STK-ER0016 | 16-inch diameter round EzySlide (heavy duty) |
It takes less than 2 minutes to install the EzySlide round damper, which saves you a lot of time in zoning installation!

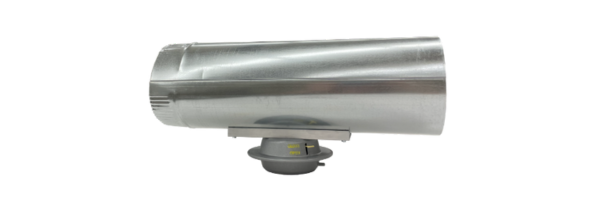

| Part Number | Description |
|---|---|
| SLV-4INST | 4-inch round damper installed in sleeve |
| SLV-5INST | 5-inch round damper installed in sleeve |
| SLV-6INST | 6-inch round damper installed in sleeve |
| SLV-7INST | 7-inch round damper installed in sleeve |
| SLV-8INST | 8-inch round damper installed in sleeve |
| SLV-9INST | 9-inch round damper installed in sleeve |
| SLV-10INST | 10-inch round damper installed in sleeve |
| SLV-12INST | 12-inch round damper installed in sleeve |
| SLV-14INST | 14-inch round damper installed in sleeve |

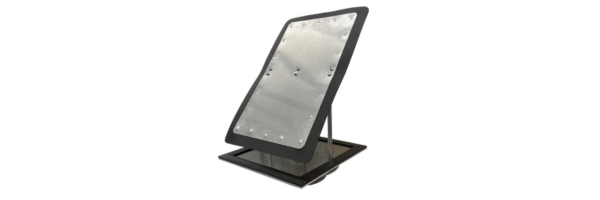

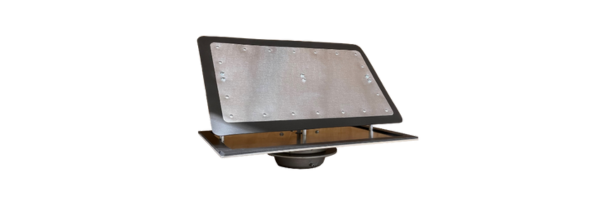

EzySlide dampers are not position-sensitive. We use the terms “bottom-mount” and “side-mount” to describe where the actuator is placed. Bottom-mount dampers have the actuator and mounting plate on the longer dimension. Side-mount dampers have the actuator and mounting plate on the longer dimension. (Square dampers are listed with the side-mount dampers here.)
| Part Number | Description |
|---|---|
| STKSB-E 8X10 | 8 x 10-inch bottom-mount damper |
| STKSB-E 8X12 | 8 x 12-inch bottom-mount damper |
| STKSB-E 8X14 | 8 x 14-inch bottom-mount damper |
| STKSB-E 8X16 | 8 x 16-inch bottom-mount damper |
| STKSB-E 8X18 | 8 x 18-inch bottom-mount damper |
| STKSB-E 8X20 | 8 x 20-inch bottom-mount damper |
| STKSB-E 8X22 | 8 x 22-inch bottom-mount damper |
| STKSB-E 8X24 | 8 x 24-inch bottom-mount damper |
| STKSB-E 8X26 | 8 x 26-inch bottom-mount damper |
| STKSB-E 8X28 | 8 x 28-inch bottom-mount damper |
| STKSB-E 8X30 | 8 x 30-inch bottom-mount damper |
| STKSB-E 8X32 | 8 x 32-inch bottom-mount damper |
| STKSB-E 10X12 | 10 x 12-inch bottom-mount damper |
| STKSB-E 10X14 | 10 x 14-inch bottom-mount damper |
| STKSB-E 10X16 | 10 x 16-inch bottom-mount damper |
| STKSB-E 10X18 | 10 x 18-inch bottom-mount damper |
| STKSB-E 10X20 | 10 x 20-inch bottom-mount damper |
| STKSB-E 10X22 | 10 x 22-inch bottom-mount damper |
| STKSB-E 10X24 | 10 x 24-inch bottom-mount damper |
| STKSB-E 10X26 | 10 x 26-inch bottom-mount damper |
| STKSB-E 10X28 | 10 x 28-inch bottom-mount damper |
| STKSB-E 10X30 | 10 x 30-inch bottom-mount damper |
| STKSB-E 12X14 | 12 x 14-inch bottom-mount damper |
| STKSB-E 12X16 | 12 x 16-inch bottom-mount damper |
| STKSB-E 12X18 | 12 x 18-inch bottom-mount damper |
| STKSB-E 12X20 | 12 x 20-inch bottom-mount damper |
| STKSB-E 12X22 | 12 x 22-inch bottom-mount damper |
| STKSB-E 12X24 | 12 x 24-inch bottom-mount damper |
| STKSB-E 12X26 | 12 x 26-inch bottom-mount damper |
| STKSB-E 12X28 | 12 x 28-inch bottom-mount damper |
| STKSB-E 12X30 | 12 x 30-inch bottom-mount damper |
| Part Number | Description |
|---|---|
| STKSS-E 8X8 | 8 x 8-inch square damper |
| STKSS-E 8X10 | 8 x 10-inch side-mount damper |
| STKSS-E 8X12 | 8 x 12-inch side-mount damper |
| STKSS-E 8X14 | 8 x 14-inch side-mount damper |
| STKSS-E 8X16 | 8 x 16-inch side-mount damper |
| STKSS-E 8X18 | 8 x 18-inch side-mount damper |
| STKSS-E 8X20 | 8 x 20-inch side-mount damper |
| STKSS-E 10X10 | 10 x 10-inch square damper |
| STKSS-E 10X12 | 10 x 12-inch side-mount damper |
| STKSS-E 10X14 | 10 x 14-inch side-mount damper |
| STKSS-E 10X16 | 10 x 16-inch side-mount damper |
| STKSS-E 10X18 | 10 x 18-inch side-mount damper |
| STKSS-E 10X20 | 10 x 20-inch side-mount damper |
| STKSS-E 12X12 | 12 x 12-inch square damper |
| STKSS-E 12X14 | 12 x 14-inch side-mount damper |
| STKSS-E 12X16 | 12 x 16-inch side-mount damper |
| STKSS-E 12X18 | 12 x 18-inch side-mount damper |
| STKSS-E 12X20 | 12 x 20-inch side-mount damper |
Here's the simple process to install a rectangular EzySlide damper. It will save you time in zoning installation!
Learn about our zoning damper options, and how to choose the best one for your application.
Here's why Arzel uses air-driven dampers in our zoning systems.
Arzel zone dampers are connected to the zoning panel with PVC tubing. Here's how to install the tubing.
How to quickly find the issue with there's a problem with damper operation in an Arzel Zoning system.
Best practices for testing the components of an Arzel Zoning system when there's a problem with damper operation.
